Serial and parallel?

#1 · June 30, 2025, 3:01 pm

Hello, how can I switch the pickups to serial or to parallel?

#2 · July 10, 2025, 11:31 am

Hi,

No, because these pickups work fundamentally differently than normal pickups.

#3 · July 10, 2025, 12:43 pm

Could you explain this a little bit further? Thank you!

#4 · July 10, 2025, 7:43 pm

The pickups work always in humbucker mode. (noiseless)

The signal from the pickup is 0 Db linear up to 10kHz.

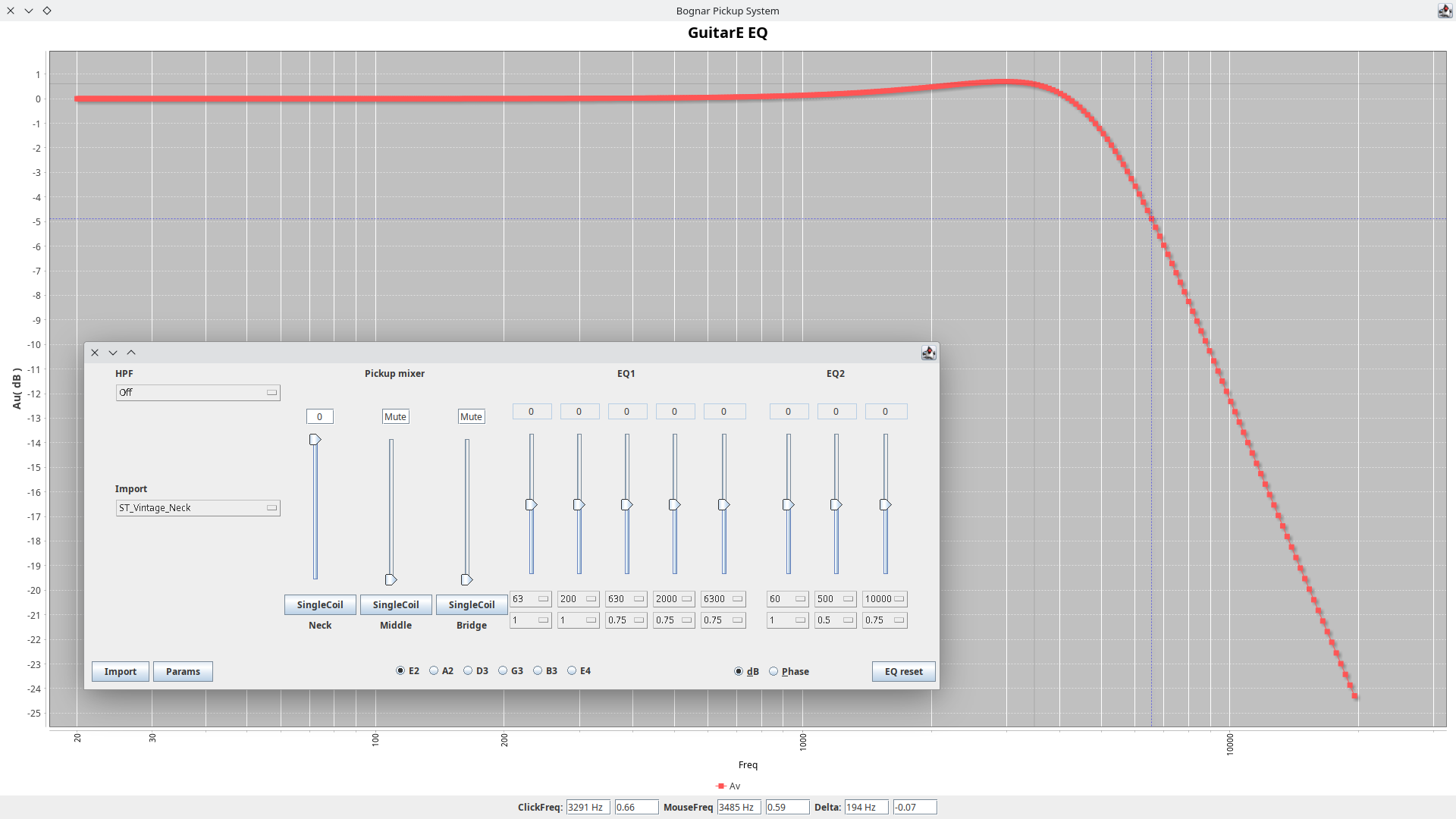

Then there is an analog filter to form the single coil shape. ( neck-single-eq-flat.png )

An other analog filter to form the form the humbucker shape ( neck-humbucker-eq-flat.png )

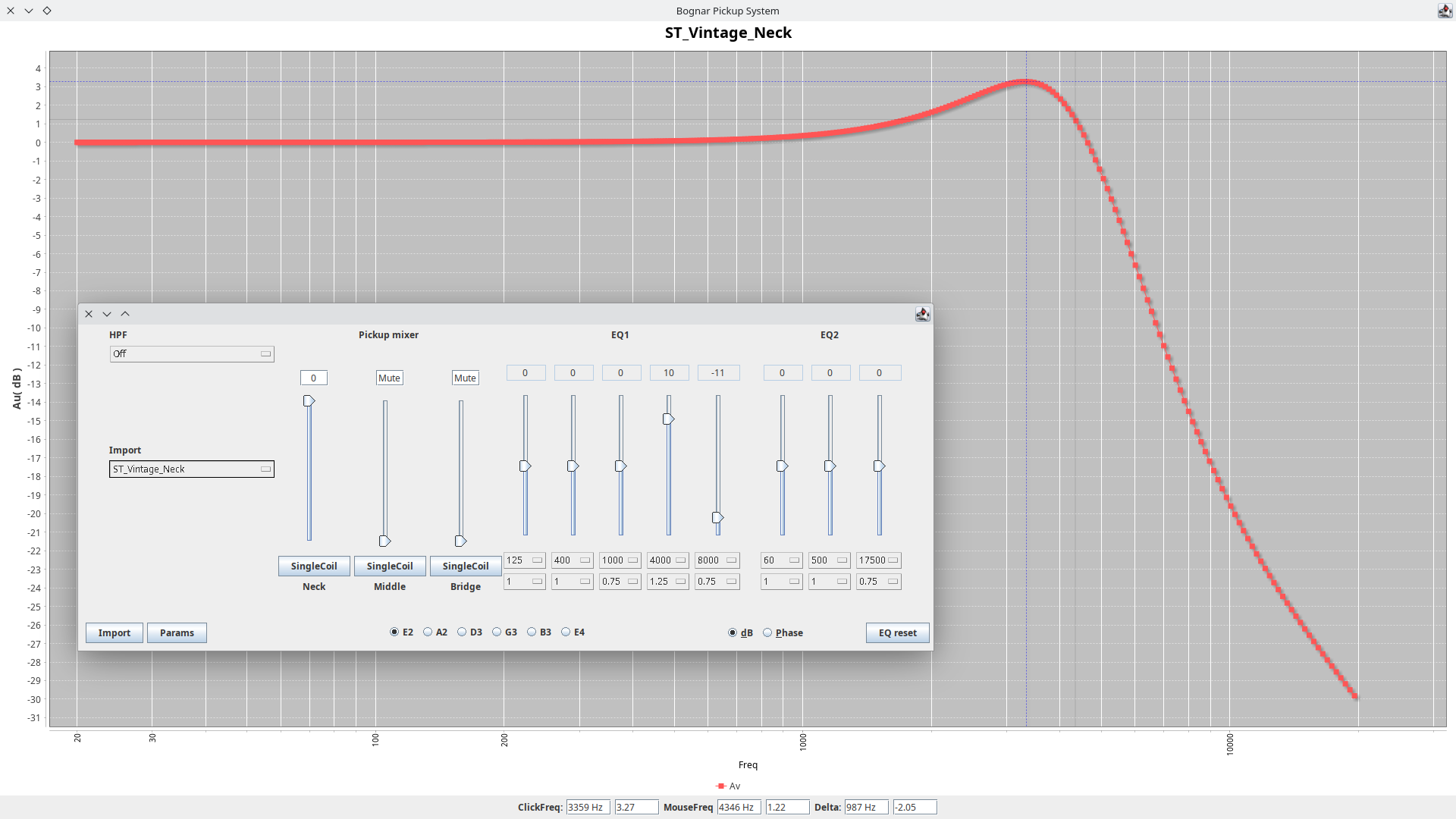

Then there is the analog EQ1 to form the desired sound. ( ST_Vintage_Neck.png )

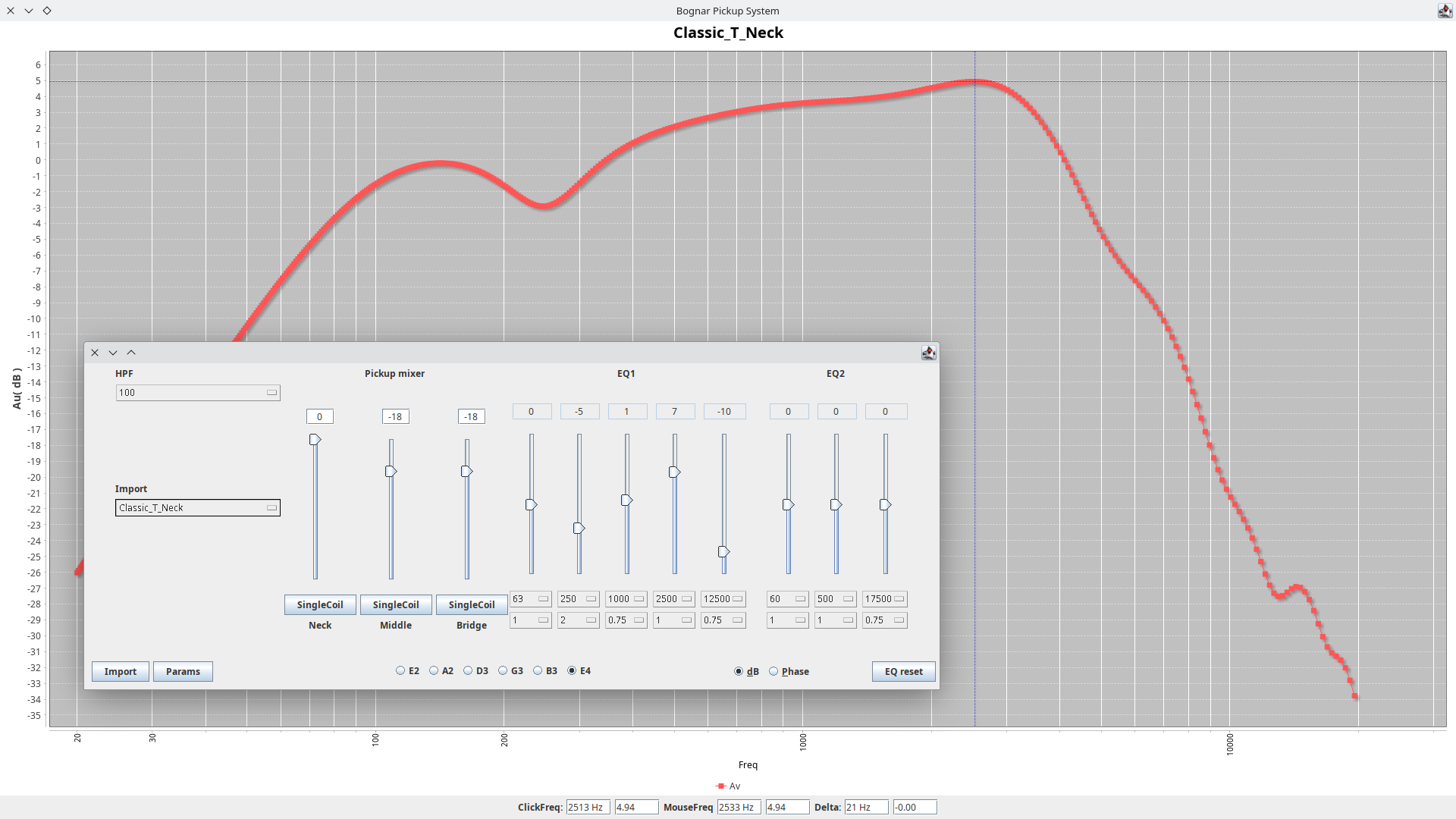

You can check yourself the Bode shapes of different presets:

and import ULTRA.exp file.
